Making a Powder Horn Pt II:
A Chronicles' Project
In Part I we started on our powder horn, and got as far as carving down to the tip. In this installment we'll get the horn itself finished, and get started on the parts.
As I mentioned in Part I, many traditional powder horns have the spout is carved directly from the horn itself. Note the shape of the tips in the adjacent pictures. Those are carved directly from the thick portion of the horn tips.
After quite a bit of whittling, rasping, scraping, and sanding, I had what amounted to what I thought might be a pretty reasonable tip to the horn.
Now that the basic shape has been determined, the center of the spout is marked, and the first hole can be drilled.
I have to be honest; drilling the initial hole for the spout had me nervous. As you can obviously tell, the hole runs at an angle through the tip and trying to drill that and come out in the middle of the cavity isn’t hard, but it’s sure as the devil himself not easy either. You really have to think about what you are doing.
I ended up going at it from both ends. I measured the angle and depth that the spout hole had, and marked that with tape on the horn itself. Then I got a long drill bit substantially larger than the one used on the spout end and drilled to the initial bore from inside the horn.
That's probably enough for the day. Go wash up and pick it up tomorrow!
The pour spout.
After I drilled the spout hole, it was time to finish it up. More carving, whittling, rasping, filing and scraping! In the end I had what I think is a pretty attractive spout. It's a little short, and really not that svelte, but for a first try it's pretty good. I have not decided what direction I am going to take with that ring I created. Maybe decorative flats, or a tab to attach the sling to.
Now let’s work on the butt end of the horn.
You have cut it square and knocked down any ridges inside. Use some coarse sandpaper, and then finish the inside so it is smooth by scraping. You need to get it pretty smooth for about half to 3/4 of an inch so that the back plug sits securely and seats full depth.
Chips flying as I turn the Sizer!
When horn is boiled it softens, becomes plastic, and can be molded to shape. But before we can round out the back end of the powder horn we have to make a “sizer.” A sizer is nothing more than a tapered piece of wood that is used to form the softened horn into a perfect circle. I would suggest looking for an old baseball or softball bat that you can cut down. It’s perfect. Otherwise you will have to whittle it out of a chunk of wood or a relatively round branch. I had a chunk of a branch sitting in the garage which I pinned in the lathe, and tapered to fit.
Home Made Turning Tools
You will notice that all my turning tools are old files that I ground down for use as skews, scrapers, and cutters. The handles are cut offs from broken shovel handles I save, or tree branches. One of my "signatures" on turned handles is a little bit of bark or knot that I leave whenever possible. I think it's a nice touch. You will learn what angle works best on the leading edge of the cutters by trial and error. I wish I could be more specific, but it seems to be different for the tool and the wood you're cutting into. I'll have to write a post on them specifically because they are relatively easy to make, all you need is a grinder and an old file, but have a couple of nuances that you need to be aware of to make them work well.
I have read that horn brought to 325 degrees F will lose all memory of its shape, whereas boiling in water to 212 F only temporarily changes the shape. In order to get to that 325 temperature, you will need to heat the horn in the oven, in a pot of oil. Boiling in water is good enough for me… For special shapes such as triangular or rectangular cross sections it is necessary to do the oil bath, so that the horn retains its shape.
The back end should now be perfectly round in shape. Time to close it up. Here you can let your imagination run rampant. Translating that imagination into reality might be a little more difficult so keep that in mind.
You have a couple of basic choices when it comes to the back plug: Flush with the back of the horn, or stand out proud. There isn’t much difference in them with respect to installation.
Choose a piece of wood that appeals to you and trim it to shape. You can drill a hole through the middle of the chunk of wood, and put a carriage bolt through it. That way it can be mounted to a drill, or drill press. That will allow you to shape it a little easier. In addition you can do any number of things with that hole, including a threaded filler plug, inset a decorative item or a flint holder, etc.

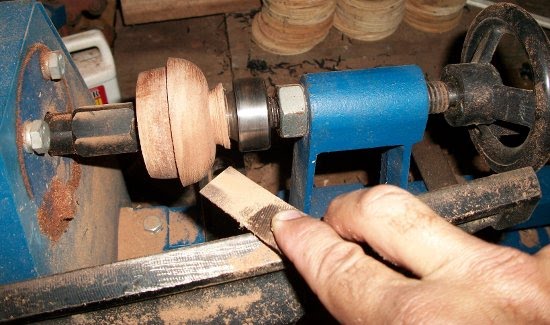

I used an inexpensive wood lathe, and worked the rough block into a round. If you have never turned wood into something useful, you really ought to try! I mostly make handles for files and chisels, and these amateur wood lathes are inexpensive and suitable for that kind of project. I wouldn't try to turn baseball bats or bed posts in them, but they are more than adequate for billy clubs, tool handles, and making sawdust and chips!
If you are trying to turn the block on a press or clamped down hand drill, you can try to use a rasp and some sandpaper to cut it down to shape. A better tool would be an old file that you grind square, with approximately a 15 to 30 degree bevel. Properly braced you can get a very nice cut and good finish on your plug.
If you were careful and scraped the horn, you can probably jump up to 320 grit wet or dry sandpaper and smooth out any blemishes or ridges that are left. If you used 100 grit sandpaper, go to 220, then 320, and finish up with 400, if you have the energy and desire. Always sand perpendicular to the last grit you used. Your finishing grit whether 320 or 400, should be sanding the horn lengthwise. The previous grit should have been done across the short way, and so on. By always sanding perpendicular to the previous grade, you will be sure of getting rid of all the scratches, leaving you a perfectly smooth horn to work with.
In the next installment we will finish our powder horn and all the parts.
